vx 2 Video input

Your vx 2 system is equipped with a capture card. This card has the ability to capture live video from the following input types.

Max Number of Unique Inputs

  3G-SDI 12G-SDI


vx 2




8




2





Supported formats
Resolution Format Hz
625i (PAL) interlaced 50.00
525i (NTSC) interlaced 59.94
1280x720 progressive 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080 progressive 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080 interlaced 50, 59.94, 60
1920x1080 PsF (Progressive segmented Frame) 23.98, 24, 25, 29.97, 30
1920x1080 A/B 50, 59.94, 60
2048X1080 progressive 23.98, 24, 25, 29.97, 30, 47.952, 48, 50, 59.94, 60
2048x1080 PsF 23.98, 24, 25, 29.97, 30


3840x2160 or 4096x2160

 progressive, 8 or 10bit, 2 Sample Interleave or Square Division 23.98, 24, 25, 29.97, 30, 50, 59.94, 60



Back-Plate Layout

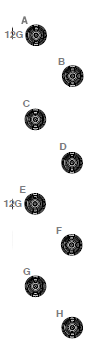

Diagram of Video Capture BNC connections on rear of unit

Please note: Live Video input inherently introduces frame latency during playback. Please contact Support for guidance on performance standards.
